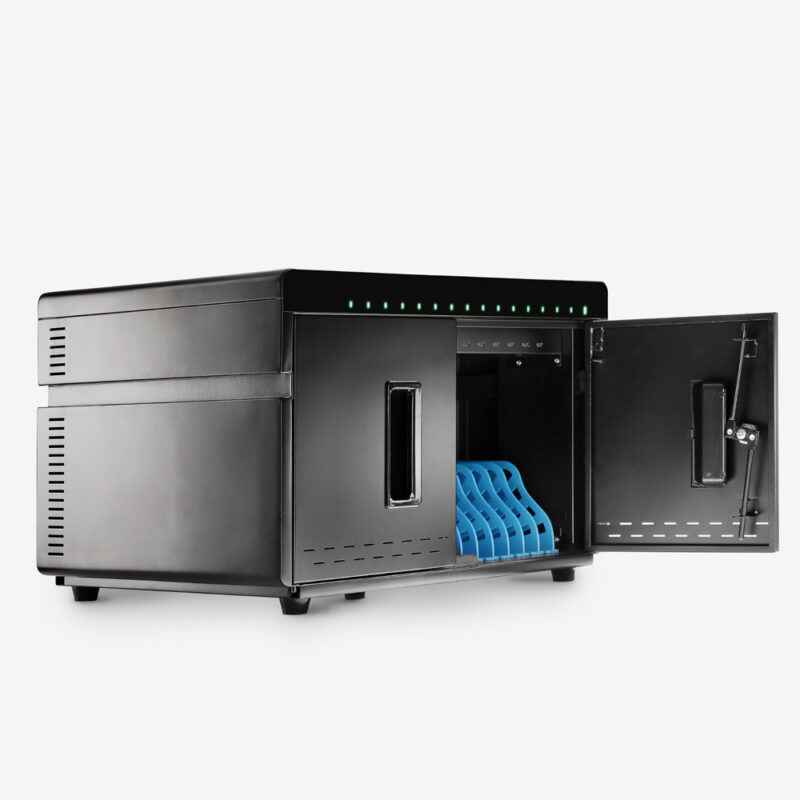

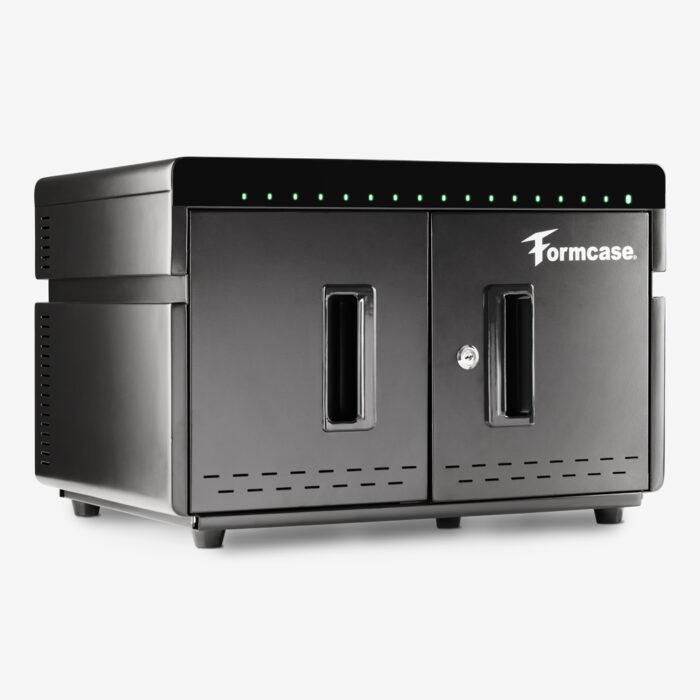

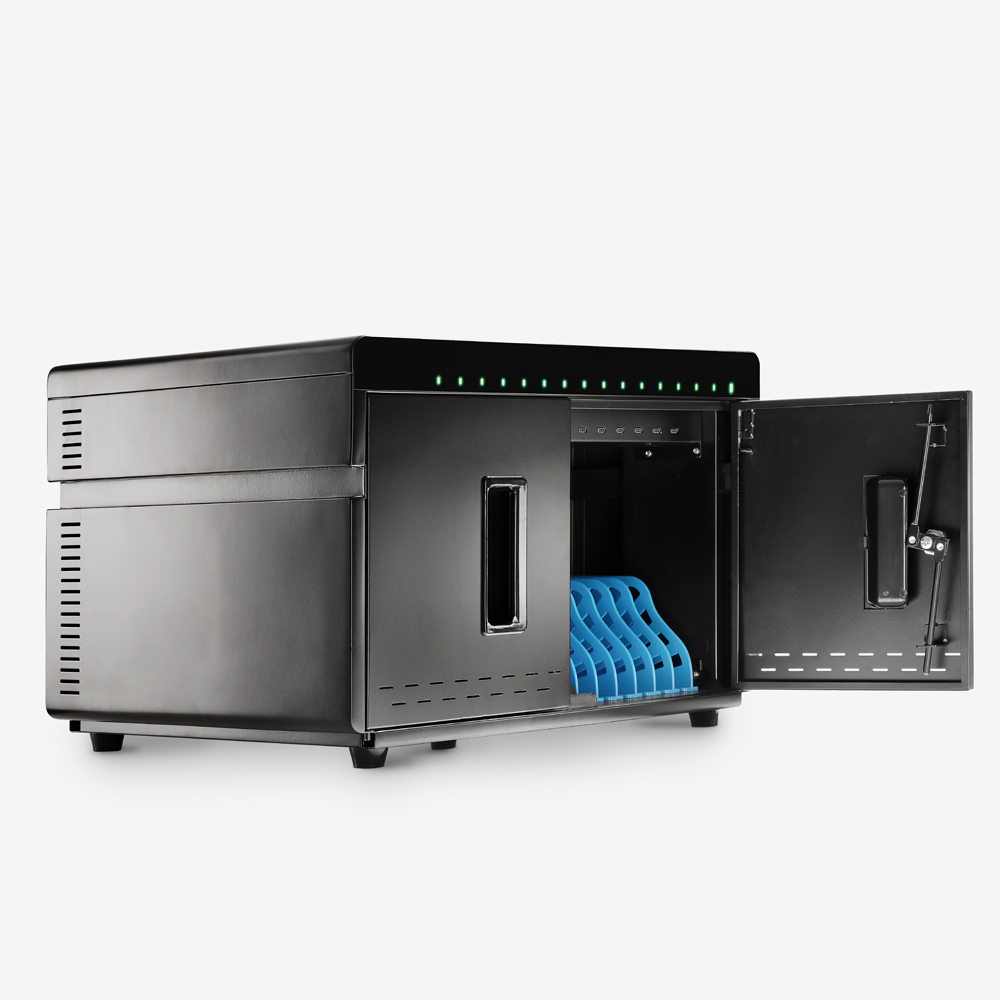

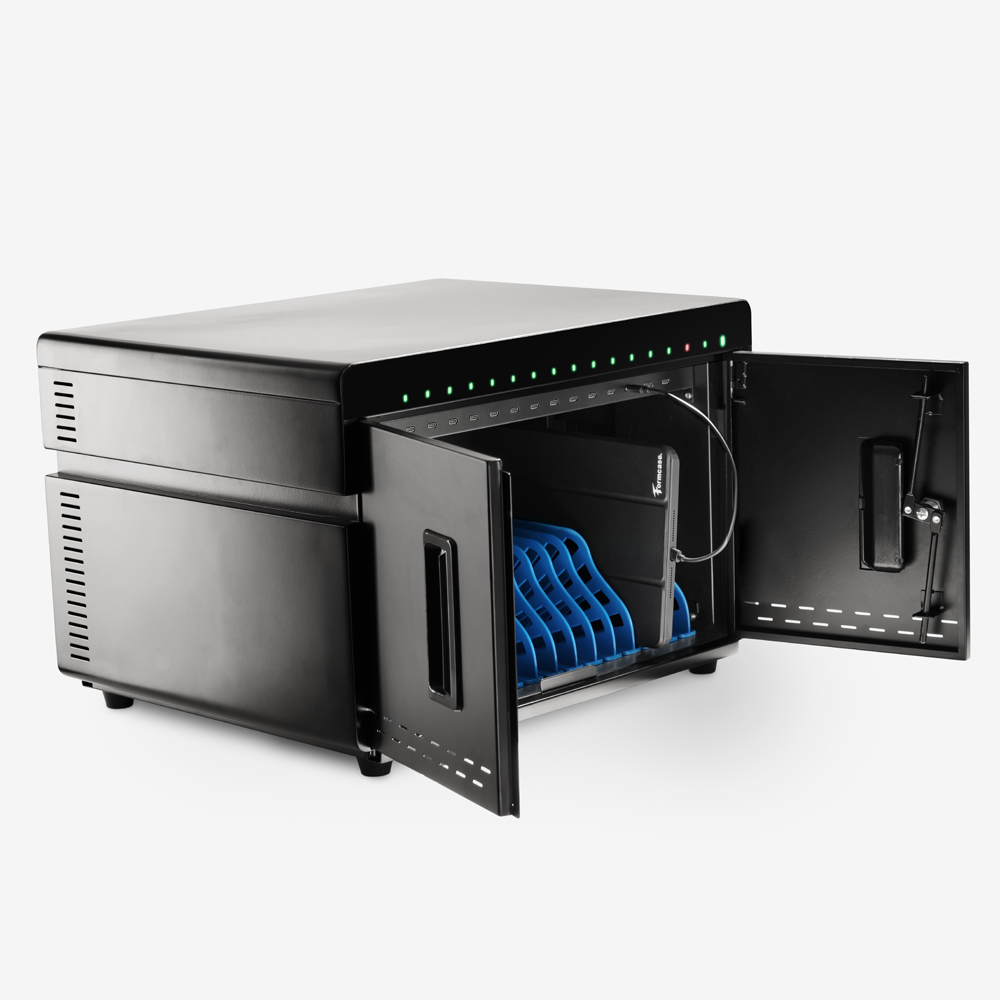

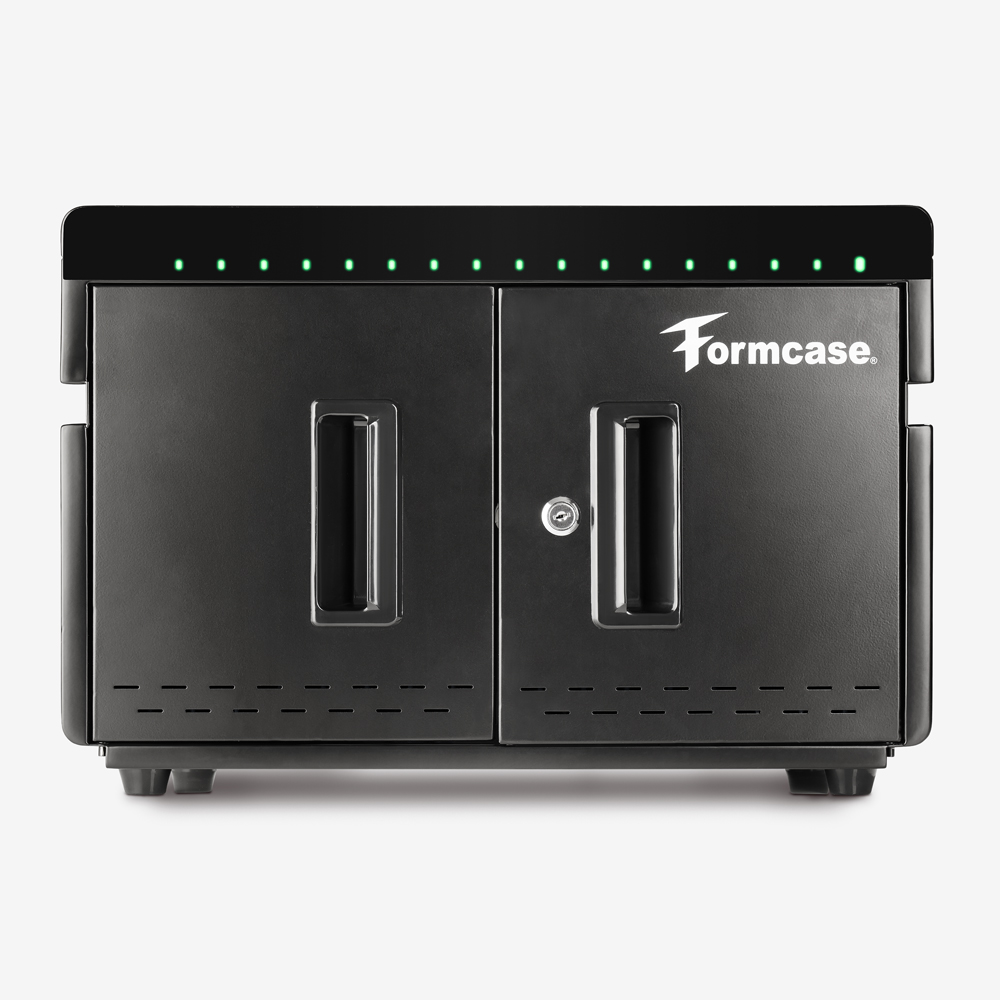

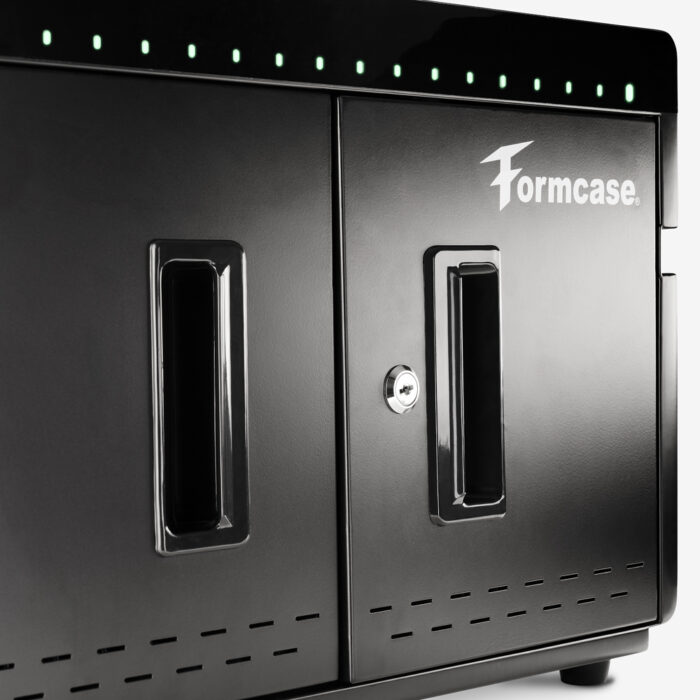

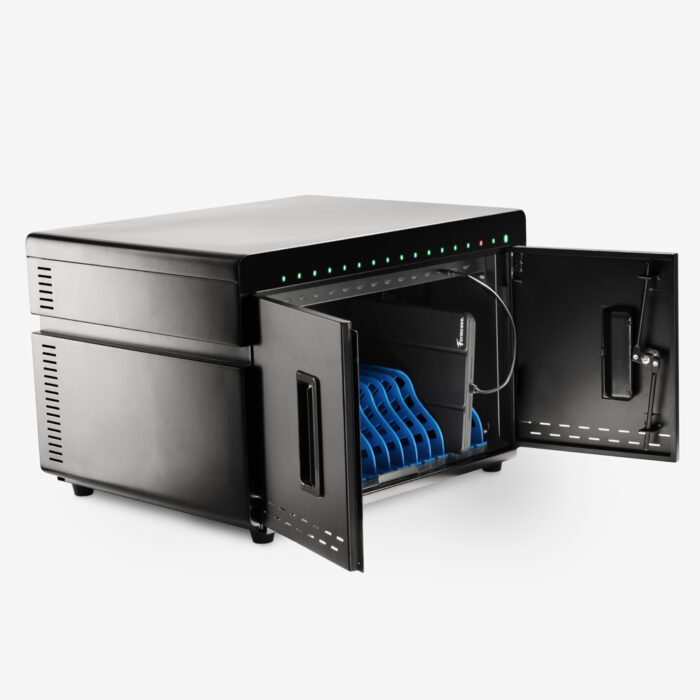

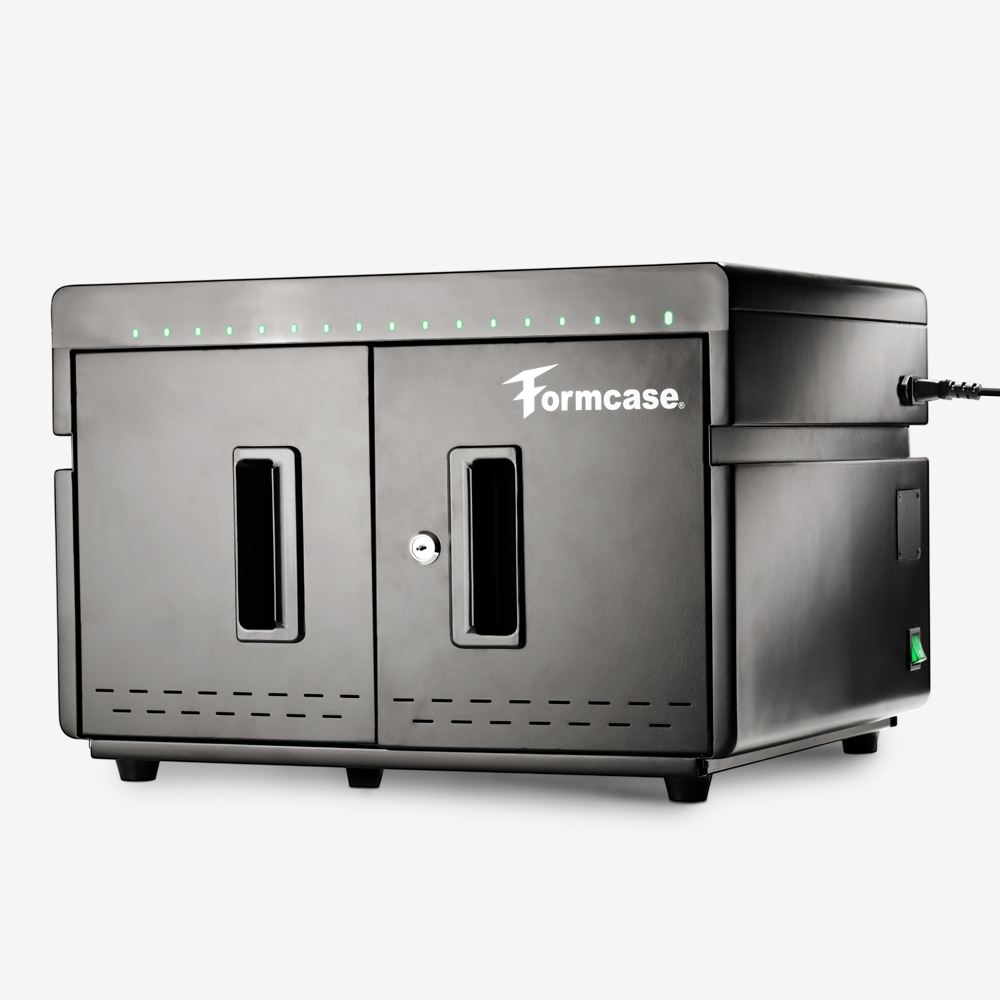

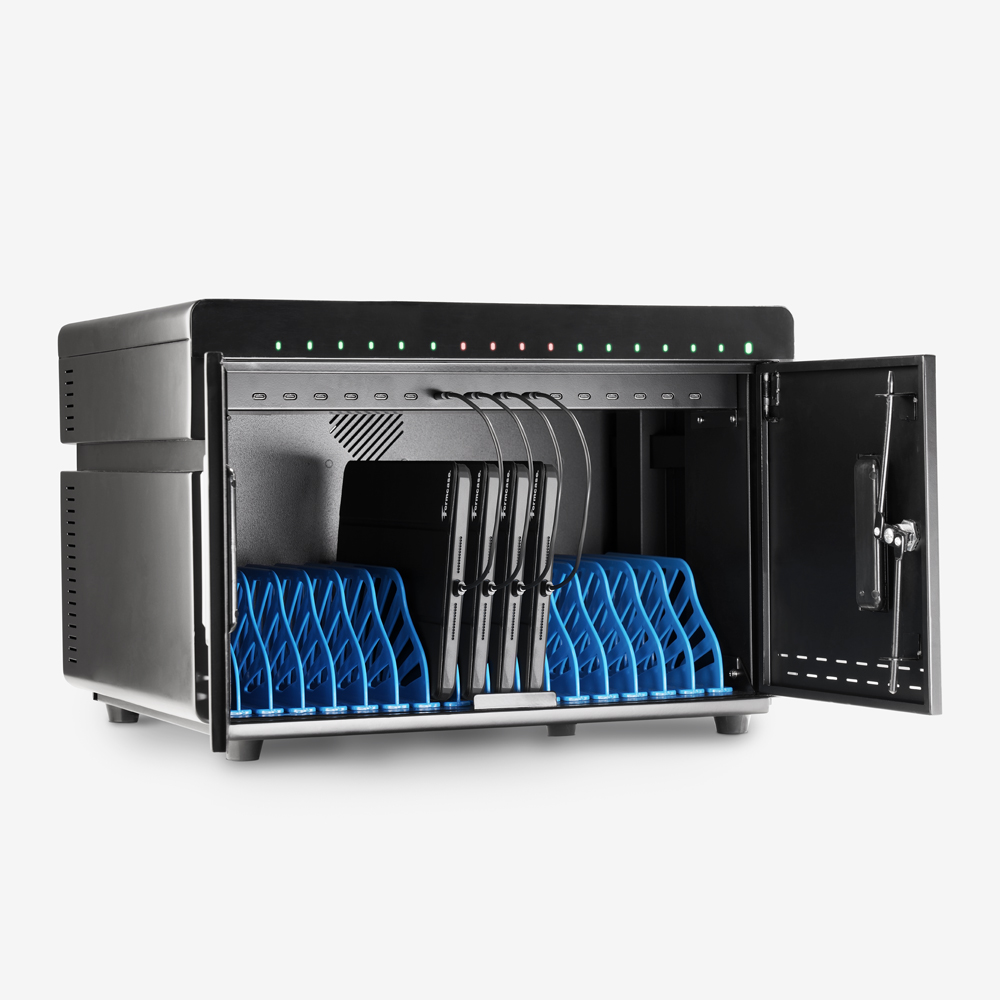

Transformer Box B16-PD Performance – USB-C

SKU: TB16PDCE1
New
Click to enlarge

Charge only!

For up to 16 devices with max. 12″

Get A Quote
Become a reseller now!

The Formcase TransformerBox charging station product line holds up to 16 devices depending on the model due to precise elaboration of the interior. In general, Formcase distinguishes between iPad charging stations with USB technology and locker systems for use in the school building. All charging stations from Formcase have an on/off switch as well as an integrated active ventilation system for optimal cooling of the solutions.

Smart charging technology eliminates the need for a timer, as Formcase charging stations automatically control the charging cycle. iPad charging solutions from Formcase are made exclusively from the highest quality materials and ensure consistent weight optimization through optimal material composition. All in all: the perfect solution for your digital schoolhouse.

Kapazität

Bis zu 16 Geräte
Aufladefunktion

Laden via USB Ports
Nach Größe filtern

Tablets (bis zu 11 Zoll)
Geräte

Android-Geräte, IOS-Geräte, Windows-Geräte
USB-Anschluss

USB-C Version
Tablet mit Hüllen

Dicke Schutzhüllen, Keine Schutzhüllen, Nicht bekannt, Normale Schutzhüllen
Marke

Aufladen über USB(20W) | maximal 11″
Filter by charging capacity

Bis 20W pro Port

Features and Functions

Features

  • Suitable for 16 tablets up to a maximum of 11″ incl. protective cover
  • LED charging status per USB port (green->charged/red->charging)
  • Dimensions per tablet incl. cover or keyboard cover
  • Height 310 x width 230 x depth 23mm
  • USB-C charging hub with automatic switch-off
  • Integrated ventilation system for perfect temperature adjustment
  • Perfect charging station for your classroom

Functions

  • Charging via USB-C (max 20W per port)
  • Safe storage
  • Easy to carry

Technical Specs

Dimensions (L/W/H) Length 520 x Width 410 x Height 350mm
Weight 18 Kg
Max. Dimensions per Slot Length 310 x Width 23 x Height 230mm
Security Completely lockable with integrated lock (key included)
Cooling Active cooling system; max. 31dBA, Air flow: 39m³/h
LED Charging Status Indication Yes, Charging-> red, – Fully charged-> green
Charging Power / Current 16-port USB-C 3.0 intelligent charging hub with automatic charging cut-off & charge distribution
(No timer necessary) -> Also works as overheating and overcharging protection
Voltages from (5V 4A/9V 2.1A /12V 1.7A) (20W) per USB port – 100 – 240 V – 50/60 Hz – Total: 320W Integrated On/Off – (I/O) switch
Synchronisation No
Power Delivery (USB-C) Yes
Transport 4 rubberised feet for placing on a sideboard
Carrying handles on both sides (all handles are recessed) Optionally wall-mountable with wall bracket
Protective Cover  For up to 16 tablets with max. 11“ incl. thick protective cover
Device Compatibility Apple iPads + Android Tablets + Windows Devices
Connections Inside + Outside Outside: IEC Socket
Labelling Option Device on the closure through transparent panel
Cable Management Easy2connect Management – Wiring management system using the original cables
Material Sheet metal + aluminium alloy
Delivery Scope: 1x 2m Power cord – (Version depending on the country)
1x Manual
16x Grommets for cable fixation
Applied Standards DIN EN 55022 / DIN EN 61140 / DIN EN 55024 / DIN EN50581 / DIN EN62368-1
Certificates CE / RoHS / REACH
Customs Tariff Number 8504409999
Warranty 1 year manufacturer‘s warranty
(Warranty extension optionally available)
Country of Manufacture China

Compatibility

Levevo Samsung Apple
TABLET TABLET iPAD
Tab M7 Tab A series iPad Any Genration
Tab M8 Tab S series iPad Air
Tab M8 Tab S series Plus
Tab M10

Downloads

Accessories

cover

Formcase Protective Covers

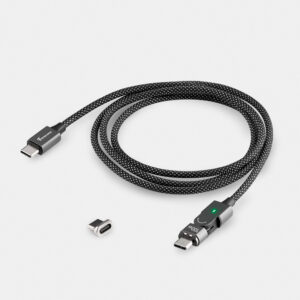

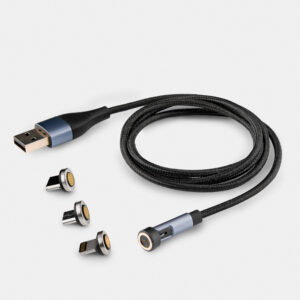

Formcase Cable

Electrical Components

Add-Ons / Spare Parts

Reviews

There are no reviews yet.

Be the first to review “Transformer Box B16-PD Performance – USB-C”

Your email address will not be published. Required fields are marked *

Performance Power - Up to 20W per port

What does "performance" mean?

The Formcase Performance Series features more powerful electronics that allow Apple iPads and Microsoft Surface GO devices to be charged via "fast charging". The built-in USB-C Power Delivery electronics deliver up to 20W per port and are therefore more powerful than the standard variants.

Stationary & Innovative

The wall-mountable charging station for your classroom! This innovative device has been designed to make your school day even more pleasant and efficient while freeing up space on your desks. The optional wall mounting of the charging station is uncomplicated and does not require any complex installations. Our charging station is equipped with safety features to protect your devices from overheating, overcharging and short circuits.

Neat & Practical

The charging station is specially designed to meet the needs of modern learning environments and allows mobile devices to be charged easily. This innovative device was developed to make the school day even more pleasant and efficient. The charging station has been designed with an appealing and modern design that fits well into your classroom environment. It blends harmoniously with your décor and adds a touch of technology and functionality to the room.

TransformerBox B16-PD Performance - Advantages

fan

Ventilation

Active ventilation system

hub

Charging electronics

LED charging status indicator

stable

Stable

Highest quality materials

battery

Charge management

No timer necessary

security

Surge protection

Intellig. Charging electronics

protect

Battery-saving

Smart charge control

compat

Compatibility

Tablets up to 12"

lock

Lockable

Key lock

product

Development

Development in Germany

Absolut robust

High Quality Product

LED Ladestatusanzeige

mit autom. Abschaltung

Ähnliche Formcase Modelle

New
Compare
Quick view
Read more

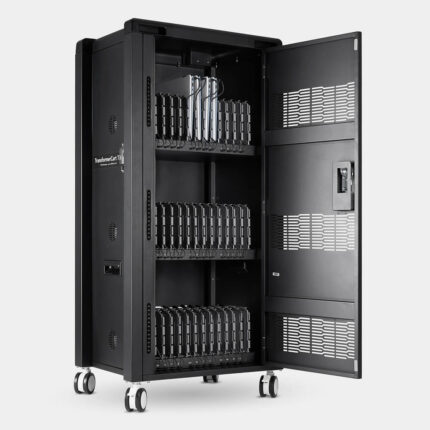

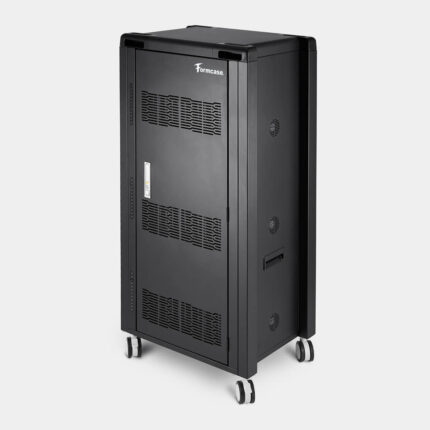

TransformerCart T36PD Perf. – Power Delivery USB-C 3.0

Power Charge! (up to 60W) | max. 15,6"
Compare
Quick view
Read more

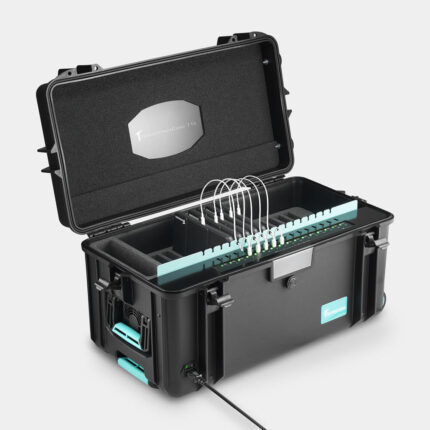

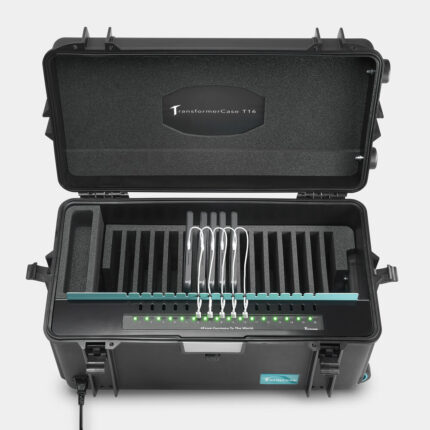

TransformerCase T16C Pro – USB-C Version

Charge Only! (12W) | max. 11"
Compare
Quick view
Select options

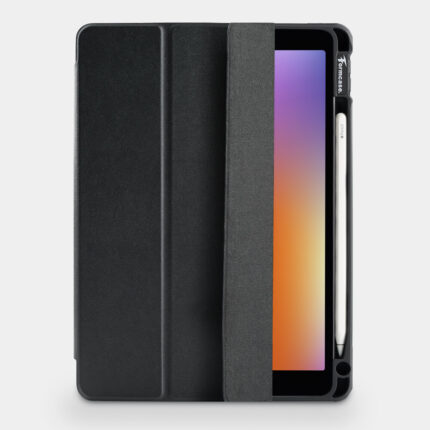

Formcase FlipCover

$0.00
New
Compare
Quick view
Read more

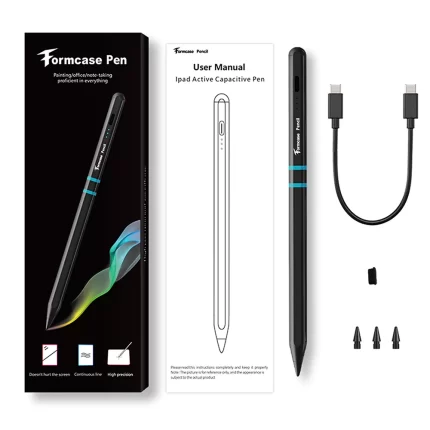

The Formcase Smart Pencil for all iPads

Compare
Quick view
Select options

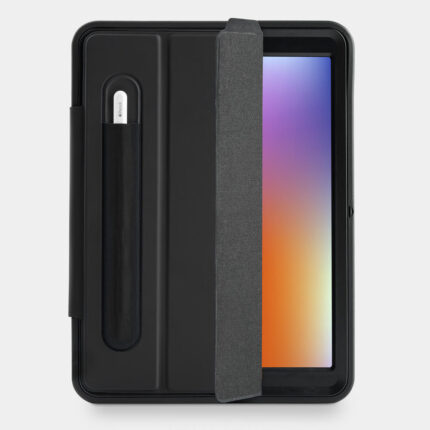

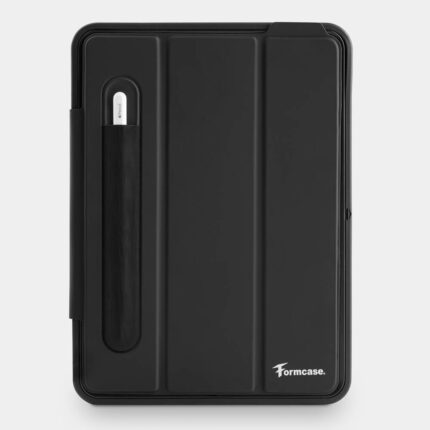

Formcase SmartCover

$0.00
Compare
Quick view
Select options

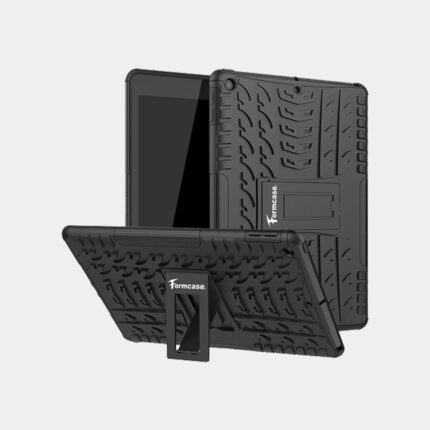

Formcase Das Cover

$0.00
Compare
Quick view
Select options

Formcase KidCover

$0.00
Compare
Quick view
Select options

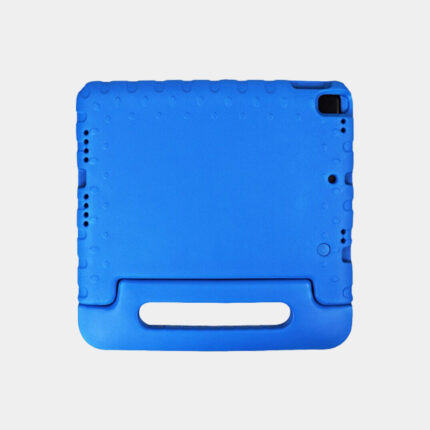

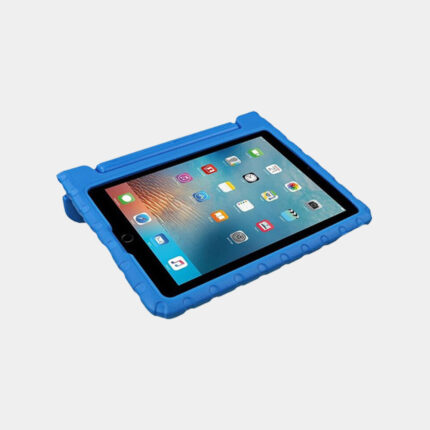

Formcase EVA KidsCover

$0.00
Placeholder
Compare
Quick view
Read more

Brennenstuhl Weekly Timer / Weekly Timer

Compare
Quick view
Read more

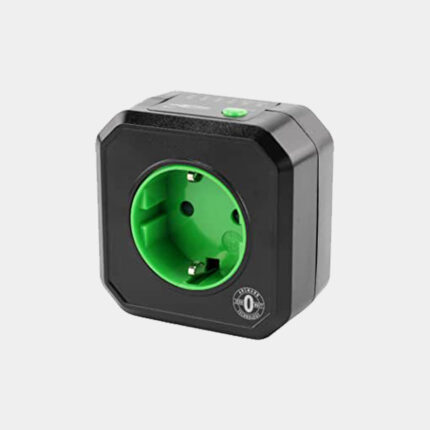

Charging timer ANSMANN
